Voice Recorder IC (Chip)
In terms of functions, voice chips can basically be divided into recording voice chips and playback voice chips. When designing a product that uses a recording solution, you must first consider whether to record live speech. If you need to record speech, choose a voice chip with a recording function. Otherwise, choose a voice chip with only a playback function. Usually voice chips with recording functions have the function of playing back speech. However, when playing speech, the sound quality is not as good as that of specialized playback speech chips. Therefore, when choosing a speech chip, you must weigh factors such as function and sound quality.

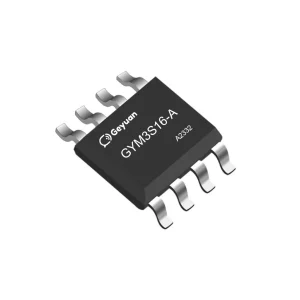

GYM3S16-A
Features
- working voltage: 2.0V – 5.5V
- Automatically enter sleep mode when not working. Sleep current: 5ua
- The button function ：long press to record, short press and short button to play, long press and short button to loop play, Long press to keep non-looping playback ，support serial port control
- The built-in amplifier can directly push the speaker, 0.5 W/8ohm
- With recording and playback prompt function they busy pin can be connected to LED display
- Sampling frequency 16KHz, bit rate support 12kbps, default for standard key functions ), 24kbps
- Recording duration: 70S at 12kbps bit rate; 16kbps 50S 16 kbps 30S in 24kbps
Chips Package
- SOP16
Application
Recordable greetingi cards, telephone exchanges, recording machine cores, security equipment, toys, etc.
Application
Music Card
Recording Pen
Walkie-talkie
Telephone
Security Record
Product Description
The voice recorder chip makes execellent GPS systems, central locks for cars, anti-theft alarms and parking sensors. It can also be used in microwave ovens, cookers, toll stations, lifts, senior toys, etc. With an operating voltage of DC2.4 ~ 5V and DAC and PWM audio output, this chip supports voice lengths of about 40 seconds at a 6KHZ sampling rate. In addition, it supports audio file playback with several sampling rates.
Product Details
For the recording solution, the user can choose a recording IC chip or a recording module. The recording and playback IC and the recording module can record and save at will by triggering the REC recording button, and after the recording is completed, trigger the PLAY play button to play the recording, and can realize repeated recording and playback. A voice storage chip (see the schematic diagram in Principles of Recording Chips), which includes two processes, ADC and DAC, both of which are completed by the chip itself, including steps such as voice data collection, analysis, compression, storage, and playback.
Pin Details
Product Parameters
| Part Number | Decode Format | Power | Output | Support external | Sample Rate | Control Method |
|---|---|---|---|---|---|---|
| GYM3S16-A | ADPCM | Dormant: 5uA Working: 5mA | 0.5W_PWM 16bit_DAC | Flash | 12 bit ADC 8-16K HZ Internal 70s recording memory | one line two line SPI / push button |
