Bluetooth Voice Recorder IC / Bluetooth Voice Recorder Chip (industiral grade)
The audio Bluetooth playback voice chip is an embedded chip that integrates Bluetooth technology and audio playback functions. It can wirelessly transmit audio signals to paired devices via Bluetooth connection to achieve high-quality, lossless audio playback. Such chips usually have multiple functions such as audio decoding, signal processing, and Bluetooth communication, providing users with a more flexible and convenient audio experience.
Our Products

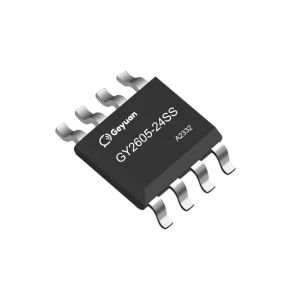

GY2605-24SS
GY2605-16S
GY2605-32N
Features
- Audio codec with 16-bit, 24-bit DAC and 16-bit, 24-bit ADC.
- Support audio equalizer adjustment.
- Support sampling rate 8, 11.025, 12, 16, 22.05, 32, 44.1 and 48KHz up to the bit rate can be 384KBPS.
- 96dB SNR high performance audio DAC and 90dB SNR ADC.
- With recording and playback prompt function they busy pin can be connected to LED display
- Sampling frequency 16KHz, bit rate support 12kbps, default for standard key functions ), 24kbps
- Recording duration: 70S at 12kbps bit rate; 16kbps 50S 16 kbps 30S in 24kbps
Recording function
- It can realize MIC recording and AUX recording, direct recording of mobile phone voice and call recording
- The recorded data can be stored in U disk, TF card or SPI FLash, SPI FLash. Support file management, can realize file index recording, file name recording and other functions
Chip Packaging
- SOP16、TSSOP24、QFN32 (4*4mm)
- Different recording products can choose different package size chips.
Application
- Fire safety recording, elevator safety long-term recording, voice recorder, meeting office recording, Fire broadcast system, wireless walkie-talkie recording, etc.
Product Parameter Comparison
GY2605-24SS
Working Voltage: DC 3.0v~5.2V
Current: 35mA
Flash Capacity: 512Kb
Interface: UART, SPI, USB2.0
Voice Format: MP3, WAV
Application: Bluetooth Speaker, Car audio, Recording pen, etc.
GY2605-16S
Working Voltage: DC 3.0v~5.2V
Current: 35mA
Flash Capacity: 256Kb
Interface: SPI, USB2.0
Voice Format: MP3, WAV
Application: Bluetooth Speaker, Bluetooth microphone etc.
GY2605-32N
Working Voltage: DC 3.0v~5.2V
Current: 15mA
Flash Capacity: 256Kb
Interface: UART, SPI, USB2.0
Voice Format: MP3, WAV
Application: Bluetooth Speaker, Portable Voice Amplifier, etc.
Application
Bluetooth Speaker
Balance Bike
Recording Pen
Voice Amplifier
Microphone
More of our products
| Part Number | Decode Format | Power | Output | Support external | Bluetooth Version | Control Method | Working Temperature |
|---|---|---|---|---|---|---|---|
| GY2605-16S | MP3 WAV WMA AAC SBC MSBC | 10uA 20mA | 16bit_DAC mono channel | PC Mode USB/Flash/TF | 5.0 Dual Mode | UART I2C / I2S / press button support bluetooth recording and serial port output support reading file from serial port can be applied to custom applications | -40 to +85 C |
| GY2605-24SS | 10uA 20mA | 16bit_DAC dual channel | PC Mode USB/Flash/TF | 5.0 Dual Mode | -40 to +85 C | ||
| GY2605-28SS | 10uA 20mA | 16bit_DAC dual channel | PC Mode USB/Flash/TF | 5.0 Dual Mode | -40 to +85 C | ||
GY2605A-32N (small size: 4x4mm) | 5uA 6mA | 24bit_DAC dual channel | PC Mode USB/Flash/TF/LED | 5.0 Dual Mode | -40 to +85 C | ||
GY2605B-32N (small size: 4x4mm) | 5uA 6mA | 24bit_DAC dual channel | PC Mode USB/Flash/TF/LED | 5.0 Dual Mode | -40 to +85 C | ||
| GY2605-48L | 5uA 8mA | 24bit_DAC dual channel | PC Mode USB/Flash/TF/LED | 5.0 Dual Mode | -40 to +85 C |
Custom chip service
Didn’t find the right voice chip? Or do you want to customize a unique or special voice chip? Check out Geyuan Electronics’ customization services or contact our pre-sales engineers directly.
